Details

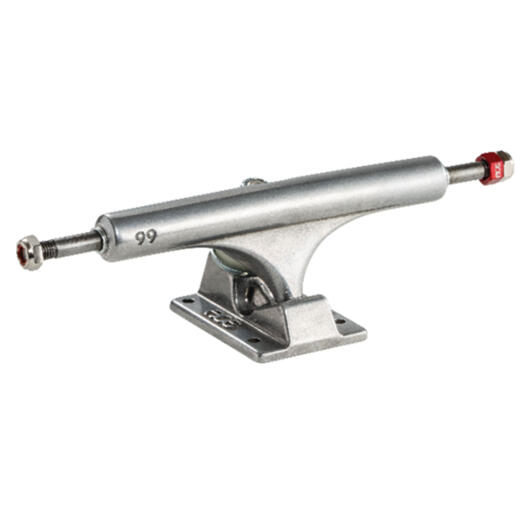

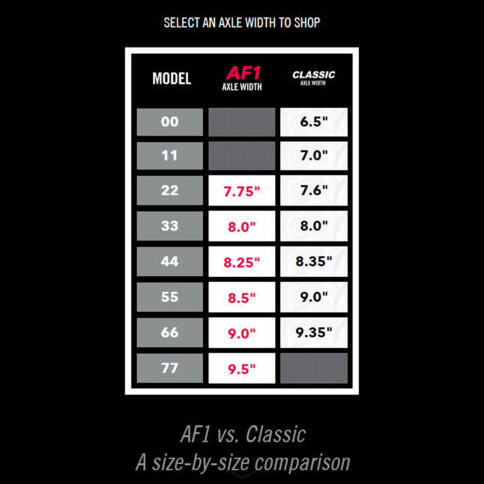

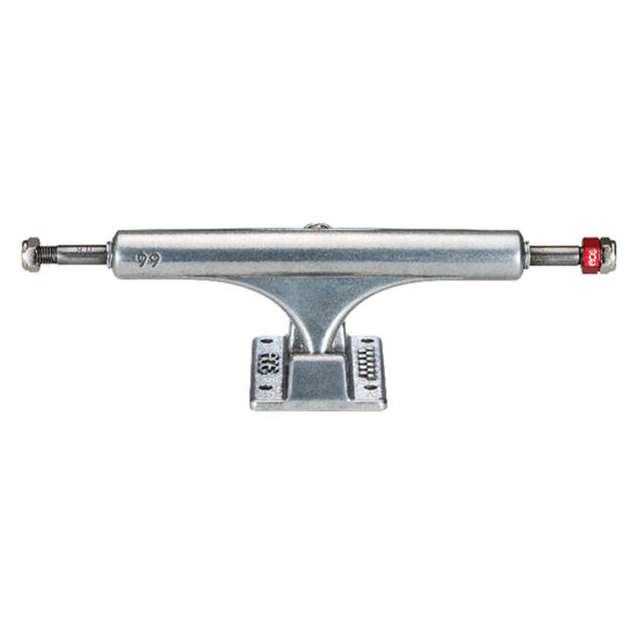

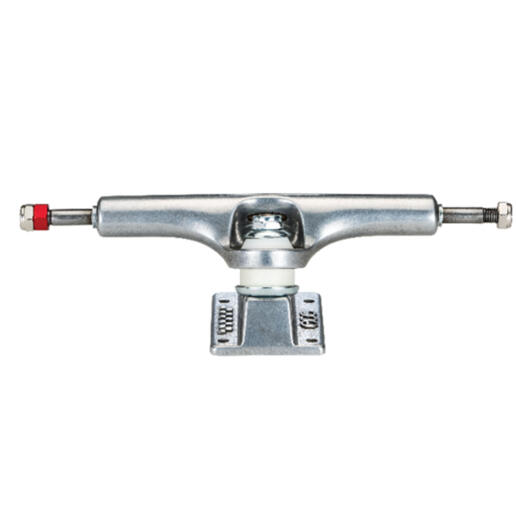

The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths. The Ace AF1, tomorrow’s technology today!

Axle width: 9” (229mm)
Hanger width: 6.4” (163mm)
Truck height: 2.1” (53mm)
Fits boards: 8.75” - 9.25”
Weight: 14.5 oz
Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
True T6 heat-treated baseplates and hangers
SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
Patent pending rethreading axle nuts - no more damaged axle ends!
Durable Hand-poured 96a urethane pivot bushings for better response.
Refined suspension for a cleaner turn.
Top Bushing: 12mm tall | 91a hardness
Bottom Bushing: Bottom 14mm tall | 86a hardness
Machine-faced hanger ends for precise bearing contact.

Introducing the most technical truck ever made

• STRONGEST CAST TRUCK EVER MADE - All-new proprietary process, Strength at a molecular level
• REFINED BASEPLATE - Improved Strength
• MATERIAL UPGRADE - Higher grade aluminum, True T6 heat treatment
• UPGRADED AXLES - SCM440 alloy steel axles, Non-slip, don’t trip
• RE-THREADING AXLE NUTS - No more stripped axles, Patent pending technology
• IMPROVED SUSPENSION - Refined bushing and washer shapes
• UPGRADED PIVOT CUPS - Hand-poured 96a urethane, Maximum durability
• FACED HANGERS - Machined to perfection, So the bearing sit flush
